How One-Way Flow Valves Work—and How to Choose the Right Design

A check valve, one-way valve, and usually non-return valve are synonymous general terms. Each describes a two-port valve—with an inlet and an outlet—that…

By Walt Brenner · 6 August 2026 · 24 min read

Are a Check Valve and a One-Way Valve the Same Thing?

A check valve, one-way valve, and usually non-return valve are synonymous general terms. Each describes a two-port valve—with an inlet and an outlet—that normally permits liquid or gas to move in one direction while limiting reverse flow. Most operate automatically, without an operating handle or external actuator; pressure and flow conditions move the internal closure element instead.

The important qualification is that the shared name describes a function, not one standardized construction. A check valve may contain a ball, hinged disc, poppet, spring-loaded plate, flexible diaphragm, rubber flapper, or duckbill-shaped sleeve. Those mechanisms can differ substantially in pressure loss, response time, debris tolerance, allowable orientation, maintenance needs, and behavior during rapid flow reversal.

That is why replacing a failed valve with another part labeled “one-way valve” is not enough. Two valves with the same nominal connection size may be intended for different media, opening pressures, temperatures, flow ranges, or mounting positions. One may depend on gravity; another may use a spring. One may tolerate wastewater solids; another may require clean liquid. One may be intended for compressed air while another expressly excludes it.

There are also specialized variants. A stop-check valve, for example, combines normal automatic checking with an external means of overriding or restricting the valve. That does not make manual control typical of check valves; it makes the stop-check a specialized combination device.

A practical definition is:

A check valve is a normally self-actuated valve that opens for intended forward flow and returns toward a closed position when the opening force falls or reverse flow develops.

This guide covers general operating principles, design tradeoffs, selection, pump-system placement, installation, and troubleshooting. Exact ratings, leakage limits, mounting positions, assembly procedures, and service approvals must come from the documentation for the specific model being considered.

How a Check Valve Opens and Closes Automatically

A check valve responds primarily to the pressure difference across it:

At rest, the ball, disc, poppet, flapper, or diaphragm is on or near its seat.
Forward differential pressure develops. Pressure at the inlet becomes sufficiently greater than pressure at the outlet.
The closure element moves away from the seat. This creates an open flow path.
Flow continues while sufficient opening force remains. The element may be partly or fully open, depending on flow rate and valve geometry.
The opening force falls. The pump may stop, upstream pressure may decline, or downstream pressure may rise.
Gravity, spring force, reverse pressure, or a combination of them returns the element toward its seat.
The seated element limits reverse flow.

Cracking pressure versus full-open pressure

Cracking pressure is the upstream-to-downstream pressure differential at which the valve begins to open. It is not necessarily the differential needed to hold the valve fully open or pass the desired operating flow.

That distinction matters in low-pressure and low-flow systems. The result may be weak flow, excessive pressure loss, partial opening, or repeated movement near the seat.

Cracking pressure is also different from:

the valve’s maximum permitted working pressure;
the system’s normal line pressure;
the valve’s reverse-pressure capability;
pressure loss across the open valve;
a transient surge pressure.

A valve can have a low cracking pressure but still impose meaningful resistance at higher flow. Conversely, a valve with a stronger closing spring may open reliably in a higher-differential system while being unsuitable for a weak gravity-fed line.

Every valve creates resistance

An installed check valve is not an empty piece of pipe. Its seat, guides, hinges, spring, closure element, and internal passages alter the flow path. These features create pressure loss—or head loss in a liquid system.

The amount depends on factors such as:

available internal flow area;
valve geometry;
how far the closure element opens;
spring force;
flow velocity;
fluid density and viscosity;
deposits, damage, or blockage;
upstream flow disturbance.

A relatively open flow path can reduce pumping losses, but an element with long travel may close later after flow begins to reverse. A spring-assisted, short-travel design may close earlier while imposing more resistance. Neither characteristic is automatically better; the correct balance depends on the system.

Closed does not always mean zero leakage

A seated check valve should not automatically be described as bubble-tight or zero-leakage. Debris can sit on the seat, sealing surfaces can wear, corrosion can impede movement, and some mechanisms permit brief reverse flow while closing. Seal condition and reverse differential pressure also affect performance. General valve guidance likewise notes that debris, seal wear, or delayed closure can permit leakage or short-duration reversal (WSD).

The operating stages can be represented as follows:

A. CLOSED / BELOW CRACKING PRESSURE

 Inlet                    Outlet
   ────────>   [ element | seat ]   ────────>
                no open path


B. CRACKING STAGE

 Inlet pressure > outlet pressure by cracking differential
   ────────>   [ element → | seat ] ────────>
                begins to lift


C. FORWARD-FLOW STAGE

 Inlet                    Outlet
   ════════>    element      ════════>
                  →       open seat


D. REVERSE-FLOW STAGE

 Inlet                    Outlet
   <────────   [ element | seat ]   <────────
               reverse pressure returns
               element toward seat

Common Check-Valve Types and Their Tradeoffs

No check-valve design is universally best. Selection is a tradeoff among head loss, closure response, debris handling, orientation, maintenance access, opening stability, and surge behavior.

The table below is a screening comparison, not a set of model specifications. Actual suitability depends on the manufacturer’s design, materials, ratings, and approved installation position.

Design	Moving element	Closure method	Relative flow-path restriction	Solids tolerance	Orientation limitations	Closure behavior	Common uses
Swing check	Hinged disc or flapper	Gravity, reverse flow, sometimes lever or spring assistance	Often relatively low when fully open	Moderate in suitable full-port designs	Frequently dependent on hinge position and model	Long travel; may close abruptly after reversal	Water, wastewater, pump discharge
Ball check	Guided ball	Gravity, reverse pressure, or spring	Low to moderate, depending on bore and ball path	Can suit selected dirty services; seat fouling remains possible	Depends on ball guidance and whether gravity is required	Ball rolls or lifts onto seat	Wastewater, sewage, pumps, selected slurry service
Spring-loaded in-line or lift	Disc, poppet, or ball	Spring plus reverse pressure	Moderate to high depending on spring and internal area	Generally cleaner media unless specifically designed otherwise	Often flexible, but model approval controls	Short travel and earlier closure	Water tubing, process lines, selected air systems
Silent or nozzle check	Centrally guided disc	Spring-assisted axial closure	Commonly higher than a fully open swing design	Usually clean or screened service	Model-specific	Short stroke intended to limit substantial reversal	Pumped mains, higher-cycle systems
Diaphragm check	Flexible diaphragm	Elastic recovery and reverse pressure	Low to moderate	Model-specific	Model- and geometry-specific	Flexible element reseats without a hinge	Selected low-pressure or chemical service
Duckbill check	Flexible elastomer lips	Material elasticity and reverse pressure	Depends strongly on opening deformation	Can pass selected solids	Installation and backpressure limits are model-specific	Lips collapse together as pressure reverses	Drainage, outfalls, selected slurry service
Dual-disc check	Two half-discs	Torsion springs, reverse pressure, or both	Moderate	Limited by hinge and seat clearances	Model-specific	Short disc travel	Compact wafer installations, water systems
Foot valve	Ball, poppet, disc, or flapper plus strainer	Gravity, spring, or reverse pressure	Moderate; strainer adds resistance	Limited by strainer opening and valve design	Installed at a pump intake as approved	Retains liquid in the suction line	Above-source pumps, wells, tanks, intakes

Swing check valves

A swing check uses a disc attached to a hinge or trunnion. Forward flow swings the disc away from the seat, often leaving a relatively open passage. This can make the design attractive where pressure loss must be limited.

The tradeoff is travel distance. If flow decelerates quickly, the disc may remain open until reverse velocity develops and then strike the seat. That event is generally called valve slam. Hinge geometry, disc mass, orientation, flow stability, external weights, and spring assistance can all alter closure.

Swing valves also need enough flow to reach and remain in a stable open position. A valve chosen merely to match a large pipe may operate only partly open at normal flow.

Ball check valves

A ball check guides a ball away from a seat during forward flow and returns it to the seat during shutdown or reversal. Depending on the design, the return force may come from gravity, reverse pressure, or a spring.

Full-bore and rotating-ball arrangements are often considered for wastewater and other particulate-bearing service because they can provide a comparatively unobstructed passage. However, “solids tolerant” does not mean immune to fouling. Fibrous material, grit, scale, or a damaged ball can still interfere with movement or seating.

Spring-loaded, lift, silent, and nozzle valves

These designs generally move a disc or poppet over a comparatively short distance. A spring begins driving the element toward its seat as forward flow declines, so closure may occur before substantial reverse velocity develops.

Potential disadvantages include:

added cracking pressure;
additional pressure loss;
restricted internal passages;
sensitivity to deposits around a guide or spring;
compatibility concerns involving spring and seal materials.

A nozzle valve typically uses a centrally guided disc and short axial stroke. The disc remains in the flow stream, so the design may create more head loss than a fully open swing valve even though its short, spring-assisted travel can provide more controlled closure (AVK).

Diaphragm and duckbill valves

A diaphragm check uses a flexible membrane that opens under forward differential pressure and returns toward its seat or closed shape as that pressure falls. A duckbill valve uses flexible lips that spread open and then collapse together.

These flexible-element designs can be useful in selected low-pressure, chemical, drainage, or particulate-bearing applications. Suitability depends heavily on elastomer compatibility, temperature, backpressure, fatigue resistance, and pressure limits. A generic rubber component should never be assumed compatible with a chemical merely because the valve opens at low pressure.

Dual-disc check valves

A dual-disc valve usually contains two semicircular plates that rotate over a short distance. It is often packaged in a compact wafer body installed between pipe flanges.

Despite the similar word “butterfly,” this is not the same as a manually operated butterfly control or isolation valve. A dual-disc check responds automatically to flow; a conventional butterfly valve uses a stem and actuator or handle to position its disc.

Foot valves

A foot valve is a check valve fitted with an inlet strainer and installed at a pump intake. The checking mechanism limits drainage back into the source, while the strainer helps exclude larger debris. It is used to help retain prime when a pump is above the liquid source.

The strainer also adds resistance and can clog. Its open area, opening size, submergence, accessibility, and compatibility with expected debris are therefore part of selection.

How to Select and Size a One-Way Check Valve

Start with the operating conditions, not a catalog photograph or pipe diameter.

Item to document	Questions to answer
Medium	Is it clean water, wastewater, gas, oil, chemical solution, slurry, or another fluid?
Solids and abrasiveness	What particles, fibers, sediment, scale, or abrasive material can reach the valve?
Chemical compatibility	Are the body, seat, seals, diaphragm, coating, spring, and fasteners compatible?
Flow range	What are minimum, normal, and maximum flow—not just pump nameplate flow?
Pressure	What are suction, discharge, static, shutoff, reverse, and maximum expected pressures?
Transients	Could startup, shutdown, column separation, or rapid flow changes exceed normal pressure?
Temperature	What are minimum, normal, cleaning, ambient, and maximum temperatures?
Cracking pressure	How much differential is available to begin opening?
Pressure loss	What is the loss at minimum, normal, and maximum flow? Is a flow coefficient or curve available?
Materials	What are the body, closure element, seat, seal, spring, shaft, and coating materials?
Connections	Socket, threaded, push-fit, union, grooved, wafer, lugged, or flanged?
Orientation	Which horizontal, vertical-up, vertical-down, or angled positions are approved?
Leakage expectation	Is slight reverse leakage acceptable? Is a published leakage classification required?
Maintenance	Can the valve be isolated, inspected, cleaned, removed, and reassembled safely?
Approvals	Are potable-water, sanitary, fire-protection, or other certifications required?

This worksheet is a screening tool. It does not replace a manufacturer’s data sheet, installation manual, pressure-loss curve, certification, or application review.

Why nominal pipe size is not enough

Matching a valve’s nominal size to the pipe may produce a convenient connection, but it does not prove that the valve will operate correctly.

An oversized valve can remain partly open at minimum or normal flow. A swing disc may hover, wobble, or contact internal stops. Possible consequences include chatter, hinge or guide wear, damaged seats, improper closure, and reverse leakage.

An undersized valve can create excessive velocity and pressure loss, restrict pump output, or accelerate wear. The correct size should therefore be evaluated across minimum, normal, and maximum flow.

A documented industry example describes an oversized swing check whose disc operated at a small opening angle before wobble, wear, and closure problems developed. The broader lesson is to size from actual operating flow rather than automatically using line size (Valve Magazine).

Use current manufacturer pressure-loss curves and flow data. Confirm that the closure element reaches a stable operating position at normal flow without creating unacceptable loss at peak flow. Descriptions such as “low-loss,” “silent,” or “full-flow” are not substitutes for performance data.

Low resistance versus controlled closure

A large, open passage can reduce pumping losses, particularly in systems that run continuously. But a long-travel disc may not close until flow has slowed substantially or begun to reverse.

A spring-loaded short-travel element can begin closing earlier and more predictably. That control may come at the cost of higher cracking pressure and greater operating loss. The appropriate balance depends on energy use, cycle frequency, reverse-flow consequences, surge potential, and maintenance access.

Similarly named valves are not interchangeable

Two published product descriptions illustrate the point:

Johnson Manufacturing describes one check valve as a compressed-air component installed between a compressor and its storage tank to prevent air from bleeding back toward the compressor head (manufacturer product page).
A John Guest tubing check valve is described as spring-loaded, intended for liquids, and mountable in any position, but expressly unsuitable for air and vacuum (retailer product listing).

These examples establish only that similarly named products can have materially different service restrictions. They do not establish general ratings for air valves, liquid valves, tubing systems, or check valves as a category.

Obtain explicit model approval before using a valve with steam, fuel, oxygen, hazardous chemicals, vacuum, sanitary processing, potable water, fire protection, or severe pressure surges. These services may involve specialized materials, cleanliness requirements, testing, certification, codes, or engineering review.

Where Check Valves Fit in Pump Systems

The suction side and discharge side perform different jobs. There is no universal rule that every pump needs a valve in both places.

Suction-end foot valve

When a surface pump sits above the liquid source, its suction line may drain after shutdown. A foot valve at the submerged inlet closes as flow stops, helping keep the suction pipe and pump casing filled for the next start.

SUCTION-SIDE FOOT VALVE

     Pump above source
          ┌──────┐
          │ PUMP │──────> discharge
          └──▲───┘
             │ intended flow
             │
~~~~~~~~~~~~~│~~~~~~~~~~~~ liquid level
             │
        [ FOOT VALVE ]
        [ + STRAINER ]
             ▲
        liquid source

The foot valve is a priming aid, not a cure for every suction problem.

Pump-discharge check valve

A discharge check limits flow back through a stopped pump. It can also prevent one operating pump from forcing reverse flow through another pump connected to a common main.

DISCHARGE-SIDE CHECK VALVE

                 intended flow
 ┌──────┐              ─────────>
 │ PUMP │───────[ CHECK ]────────── common main
 └──────┘          arrow ────────>

The correct arrangement depends on the pump, system pressure, isolation requirements, maintenance strategy, and applicable design requirements. Follow the pump manufacturer’s instructions and the engineered piping arrangement rather than assuming one generic component sequence fits every installation.

Placement affects valve stability

Location affects more than accessibility. Flow immediately downstream of a pump, elbow, tee, reducer, or increaser may be swirling, asymmetric, or turbulent. Some closure elements respond by rocking, fluttering, or opening unevenly. Repeated unstable movement can wear hinges, guides, shafts, springs, and seats.

Straight pipe can help flow settle, but there is no universal spacing number for every valve and piping geometry. One industry article characterizes MSS SP-92 as recommending particular straight-pipe distances after common disturbances, while also reporting field alternatives and advising manufacturer consultation where space is limited. Consult the current standard, valve manufacturer, and system designer for the actual geometry rather than treating an abbreviated rule of thumb as universal.

Private wells and pressure tanks

Recommendations for additional check valves in private-well systems are not consistent. Some commercial guidance recommends another check near the pressure tank while also acknowledging debate and warning that multiple valves may trap air or contribute to vacuum and water-hammer concerns if one fails.

Treat well-system placement as configuration-specific. Pump type, existing valve location, well depth, pressure-tank arrangement, local requirements, and manufacturer instructions all matter.

Installation Essentials: Direction, Orientation, Support, and Testing

Before opening a line, follow the site’s approved shutdown and energy-isolation procedure. At a minimum, the equipment should be stopped, applicable energy sources isolated, and the line drained and depressurized before cutting or disassembly. Confirm that trapped pressure cannot remain in the section being opened. General PVC-valve installation guidance likewise calls for shutdown, drainage, and depressurization before work begins (Maxx Supply).

If the hazards or isolation boundaries are uncertain, stop and use a qualified installer or the facility’s responsible safety personnel.

Follow the flow arrow

The arrow cast, stamped, printed, or molded into the valve body must point in the intended forward-flow direction. On a typical pump discharge, it points away from the pump.

The arrow identifies flow direction, not a universal mounting orientation. An arrow pointing upward does not mean every valve may be installed in a vertical riser. Likewise, a horizontal product photograph does not prove that horizontal installation is mandatory.

Some spring-loaded models permit several positions because the spring provides the closing force. Gravity-dependent swing, lift, or ball designs may require a particular plane or flow direction. Verify horizontal, vertical-up, vertical-down, or angled mounting in the exact model’s instructions.

Support and align the piping

Do not use the valve body to pull misaligned piping into place. Provide independent support consistent with the piping design so pipe weight, vibration, thermal movement, and connection loads do not distort the valve or its joints.

Before final assembly, confirm that:

pipe centerlines align without forcing;
mating connections fit correctly;
the valve can be removed for service;
covers, unions, bolts, and access plugs remain reachable;
the closure element has its required orientation;
nearby fittings comply with model-specific placement guidance.

PVC socket installation

For a solvent-welded PVC valve:

Confirm that the valve, pipe, primer, and cement are compatible.
Cut the pipe square.
Remove internal and external burrs.
Lightly bevel the pipe end if required by the fitting instructions.
Clean the mating surfaces.
Dry-fit the assembly to confirm insertion depth, alignment, arrow direction, and support.
Apply compatible primer and cement using the product manufacturers’ procedures.
Insert the pipe fully and control push-out while the joint sets.
Do not reposition or pressurize the assembly prematurely.
Follow the cement manufacturer’s cure instructions for the actual pipe size, temperature, pressure, and service.

For threaded, union, grooved, or flanged valves, follow the valve and fitting manufacturers’ instructions for sealants, gaskets, bolt patterns, tightening sequences, and torque. Do not improvise universal torque or sealant values.

Commission carefully

After assembly—and after full solvent-cement cure where applicable—restore pressure gradually under the approved commissioning procedure.

Observe the system during startup, normal operation, and shutdown. Check for:

external leakage at joints and body seals;
correct forward flow;
unacceptable reverse leakage;
smooth opening and closure;
chatter or vibration;
banging during shutdown;
abnormal pressure loss;
movement or strain in the piping.

Use licensed or otherwise qualified installers where required by the local authority or where the system is regulated, hazardous, highly pressurized, or safety-critical.

Troubleshooting Leakage, Chatter, Sticking, and Pressure Loss

Do not disassemble, clean, probe, or remove a check valve while the line is pressurized. Follow the approved isolation procedure, drain the affected section, and verify a safe condition before inspection.

The matrix below is a diagnostic starting point, not a substitute for the valve manual or system analysis.

Symptom	Likely causes	Safe checks	Escalation point
Backward leakage or loss of prime	Debris on seat; worn seal; corrosion; reverse installation; unsuitable orientation; inadequate closing differential; damaged closure element or seat	Verify arrow and approved orientation; compare conditions with documentation; inspect only after safe isolation	Replace or obtain manufacturer review if the seat, body, spring, hinge, or guides are damaged
Valve will not open or forward flow is weak	Insufficient differential; cracking pressure too high; blocked or stuck element; excessive spring force; undersized or incompatible valve	Compare inlet and outlet pressure where suitable instruments exist; inspect upstream strainers; verify medium and flow data	Recalculate sizing or consult the pump and valve manufacturers
Chatter, flutter, or unstable movement	Oversizing; too little flow to hold the valve open; turbulent placement; fluctuating pump output; damaged guide or hinge	Compare actual flow with the published operating range; note nearby pumps and fittings	Review valve size, style, and location; consider piping or pump-control changes
Banging during shutdown	Valve slam; rapid reversal; column separation; pump-control event; excessive system velocity	Record when the sound occurs and review the pump stop sequence	Obtain specialist review or transient analysis if banging is severe or recurrent
Excessive pressure loss	Valve too small; restricted geometry; strong spring; partial opening; obstruction; unsuitable valve for the medium	Compare measured differential with the current manufacturer curve; inspect after isolation	Resize or select another mechanism if clean-valve loss remains excessive
Sticking	Deposits; corrosion; swollen elastomer; damaged spring; misalignment; solid obstruction	Verify material compatibility and inspect accessible parts after isolation	Replace the valve if materials or internal parts are degraded
Delayed resealing	Low-cracking-pressure design; behavior after inactivity; debris; inadequate closing differential	Compare behavior with the model documentation	Consult the manufacturer if delay exceeds documented behavior
External leakage	Improper joint assembly; failed gasket or union seal; cracked body; pipe strain; incomplete PVC cure	Depressurize and inspect alignment, support, joints, and body	Replace damaged parts and correct piping loads before recommissioning

Diagnosing backward leakage

Start with the simple possibilities: check the body arrow and approved mounting position. Then consider seat contamination, wear, corrosion, or damage. A valve may appear normal externally while a strand, scale flake, or grain of grit prevents complete seating.

Loss of pump prime is not proof that the foot valve is defective. Suction-pipe joints, fittings, priming plugs, seals, or the pump casing may also admit air or leak water. Test the system methodically rather than replacing the valve first.

Diagnosing weak forward flow

Where the system provides suitable test points and the work can be performed safely, compare pressure on both sides of the valve. If it does not begin opening, the available differential may be below its cracking pressure.

Pump discharge pressure alone does not establish valve differential. Downstream pressure acts against opening, so the relevant value is the difference across the valve.

Diagnosing chatter

Chatter often indicates that the closure element cannot find a stable open position.

It may shift the operating point while adding cracking pressure and pressure loss. Increasing valve size can also make low-flow instability worse.

Delayed resealing

Delayed resealing must be judged against the selected model’s documentation. For example, one published listing warns that a particular low-cracking-pressure liquid valve may take several seconds to reseal after a period of inactivity. That is a product-specific condition, not a general allowance for delayed check-valve closure.

Do not impose one arbitrary inspection interval on every valve. Base inspection and maintenance on manufacturer instructions, fluid cleanliness, solids loading, corrosion potential, cycling frequency, observed performance, accessibility, and the consequences of failure.

Water Hammer, Isolation, Backflow Protection, and Safety Limits

A check valve can limit reverse flow, but it cannot be assumed to eliminate water hammer.

Valve slam versus broader transients

Valve slam occurs when a closure element seats after flow has already begun moving backward. The sudden stop can create a pressure wave.

Wider system transients can arise from:

pump startup or shutdown;
rapid speed changes;
power failure;
column separation and collapse;
fast operation of another valve;
changes in tank or air-vessel behavior;
long pipelines containing a substantial moving fluid mass.

A faster-closing check valve may reduce reverse velocity before seating in one system, yet an abrupt change in flow can worsen a pressure surge in another. The fastest valve is therefore not automatically the safest. Closure timing must be evaluated as part of the complete hydraulic system.

Severe surge risk, long pumped mains, rapid pump changes, repeated banging, or unexplained pressure spikes may require transient analysis, manufacturer involvement, revised valve placement or sizing, a different valve mechanism, or changes to pump controls. Manufacturer guidance similarly cautions that quick closure cannot prevent every startup or shutdown surge.

A check valve is not an isolation valve

A check valve is self-actuated. It can open whenever differential pressure favors forward flow, and it may leak in reverse. It does not provide deliberate, operator-controlled isolation for maintenance.

Use an appropriate manual or actuated isolation valve where positive shutoff is required. Follow the site’s approved isolation and energy-control procedure rather than relying on a check valve as the sole barrier protecting someone who opens a line.

A basic check valve is not necessarily a backflow-prevention assembly

Although check valves limit reverse flow, a basic check valve may not satisfy local requirements for potable-water or hazardous cross-connections. Depending on the jurisdiction and hazard, an approved backflow arrangement may require a specific assembly, installation configuration, accessibility, test features, or inspection by qualified personnel.

Two ordinary checks installed in series—or a product marketed as a “dual check”—should not automatically be treated as equivalent to a regulated double-check assembly. Product names alone do not establish certification, testability, hazard suitability, or local acceptance. Verify the required assembly with the authority having jurisdiction.

Warning: Do not use an unverified homemade PVC check valve for compressed air, high pressure, potable water, hazardous media, or safety-critical service. A published DIY tutorial bases its performance claims on personal experiments rather than standardized qualification and warns that higher pressure may eject internal parts, jam the valve, or cause structural failure (Instructables). Use a properly rated and approved commercial valve for the intended service.

Escalate selection or troubleshooting to the manufacturer, a qualified installer, or an appropriate engineer when the system involves:

hazardous, toxic, flammable, corrosive, or oxygen-enriched media;
potable-water cross-connections or other regulated systems;
unknown body, seal, spring, or coating compatibility;
steam, compressed gas, vacuum, sanitary, or fire-protection service;
repeated valve failure;
severe or recurring surge;
long pumped pipelines or column-separation risk;
pressure, flow, or transient calculations beyond the available documentation.

Frequently Asked Questions

Can a check valve be installed vertically or horizontally?

Sometimes. Orientation is model-specific. Certain spring-loaded valves are approved for multiple positions because the spring supplies the return force. Gravity-dependent swing, lift, and ball designs may require a particular flow direction, hinge plane, or vertical orientation.

The body arrow must follow intended flow, but it does not by itself establish mounting orientation. Check the exact model’s approved positions.

What is the difference between cracking pressure and operating pressure?

Cracking pressure is the differential across the valve at which the closure element begins to open. Operating pressure describes pressure present during service or the permitted working-pressure range.

A valve may begin opening at its published cracking differential yet require more differential to reach a stable open position at the desired flow.

Can a check valve prevent water hammer?

It may reduce reverse flow or close before substantial reversal, but it cannot be assumed to prevent water hammer. Pump startup, shutdown, rapid speed changes, column separation, and other system events can also create pressure waves.

Recurring banging should be treated as a system problem involving valve type, sizing, placement, pump control, velocity, and pipeline dynamics.

Is a foot valve the same as a check valve?

A foot valve is a special type of check valve installed at a pump intake. It includes a strainer and helps retain liquid in the suction line when the pump is above the source.

Not every check valve is a foot valve. The strainer, intake location, debris exposure, and priming function distinguish it from a typical discharge check.

Is a check valve the same as a backflow preventer or shut-off valve?

No. A basic check valve automatically limits reverse flow but may leak and does not provide deliberate operator-controlled isolation, so it does not replace a manual shut-off valve.

It is also not automatically equivalent to an approved backflow-prevention assembly. Verify applicable local requirements rather than relying on labels such as “check,” “dual check,” or “one-way.”

Choosing the Right Check Valve

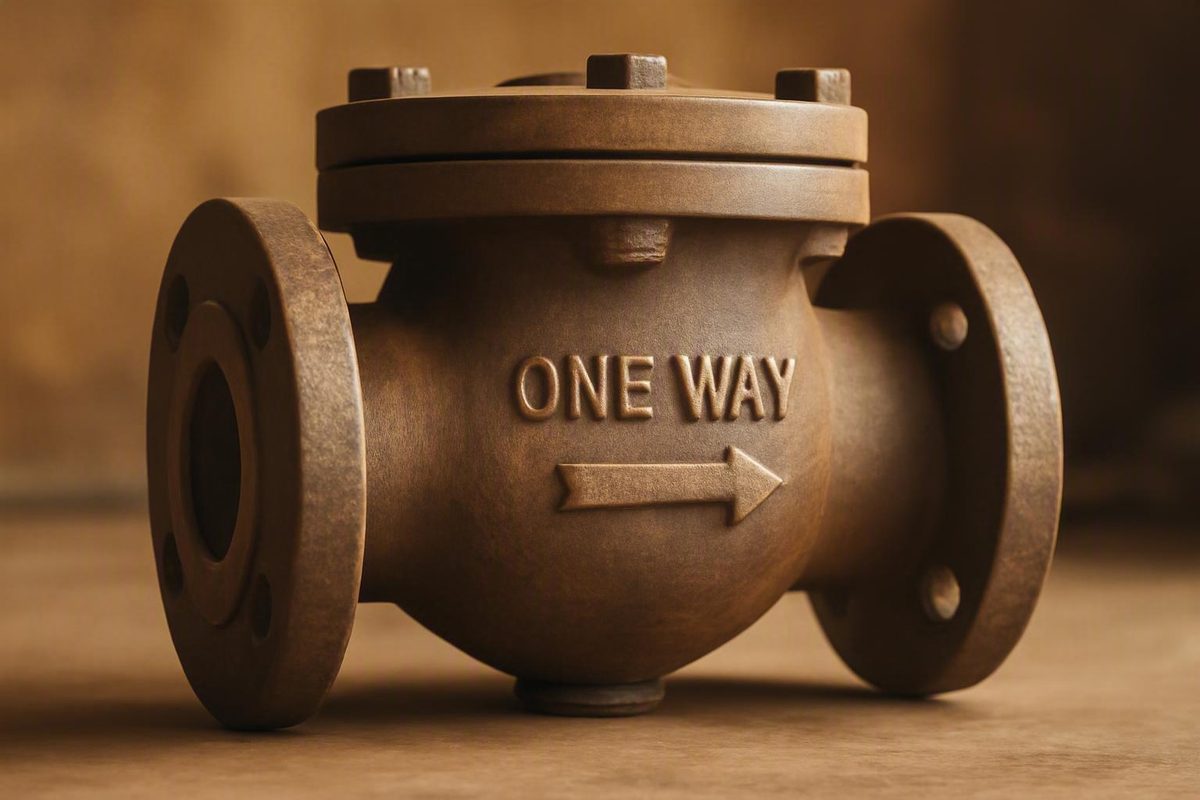

The terminology is simple, but selection is not: a check valve is a one-way valve, yet reliable service requires a model matched to the actual medium, full flow range, cracking pressure, pressure loss, materials, orientation, and closure dynamics.

Use this five-step approach:

Identify the service: Document the medium, solids, chemistry, temperature, hazards, and regulatory requirements.
Define the operating range: Establish minimum, normal, and maximum flow along with working, reverse, and potential transient pressures.
Compare suitable mechanisms: Balance head loss, closure response, solids handling, orientation, and maintenance access.
Verify current documentation: Use manufacturer curves, approved mounting positions, material details, certifications, pump instructions, and applicable local requirements.
Treat recurring symptoms as system evidence: Investigate leakage, chatter, sticking, or hammer instead of assuming that any replacement check valve will solve the problem.
