Get a Water Pump Flowing Again Without Running It Dry

By Walt Brenner · 10 August 2026 · 19 min read

Quick answer: What does it mean to prime a pump?

Priming a pump means filling the pump casing—and, when the design requires it, the suction line—with the liquid being pumped while allowing trapped air to escape through an approved vent, priming port, filling tee, or other designated path.

A surface-mounted centrifugal or jet pump may not move water if too much air remains in its casing or suction piping. Instead of establishing the low-pressure condition needed to draw water from the source, the impeller may recirculate air. Replacing that air with liquid allows the pump to begin transferring water.

The pumped liquid commonly cools or lubricates seals and other internal components. Without it, friction and heat can damage those parts, although the speed and type of damage vary by pump design. Guidance on dry-running damage and prevention emphasizes maintaining adequate liquid and using suitable protective controls where needed.

This guide primarily covers common surface-mounted centrifugal and jet water pumps, including many household well, transfer, irrigation, and pool-pump installations. Do not apply it to:

Automotive fuel or injection pumps
Hydraulic systems
Chemical-service pumps
Sanitary or sterile process systems
Specialized industrial process pumps
Equipment containing hot, flammable, toxic, corrosive, or otherwise hazardous liquid

The pump’s model-specific manual is the controlling source. Use it to identify the approved filling point, acceptable priming liquid, required valve positions, pressure-relief procedure, electrical precautions, startup limit, and normal operating range. If this general procedure conflicts with the manual, follow the manual.

Identify the pump and installation before opening anything

Before asking how to prime a pump, determine what kind of pump and piping arrangement you have. The correct method depends on the pump’s location relative to the source, whether the system retains liquid after shutdown, and how trapped air is intended to escape.

Pump or installation	Does it usually need manual priming?	What matters most
Conventional surface-mounted centrifugal or jet pump with the source below it	Commonly, yes	Fill the casing and usually the suction piping; prevent drain-back
Flooded-suction pump with the source above it	Often little or no manual pouring	Gravity can fill the pump, but trapped air still needs an approved escape path
Submerged or submersible pump	Generally not as a routine task	Liquid already surrounds or fills the pumping section
Self-priming centrifugal pump	Usually needs an initial liquid charge	It removes suction-line air by using liquid retained in its casing
Pool pump	Often filled through the strainer basket	The basket lid and gasket must reseal correctly
Unknown pump or unfamiliar piping	Do not guess	Find the data plate and model manual first

Surface pump with the water source below it

This is a suction-lift or negative-suction arrangement. The pump must lift water to its inlet, so the casing and, for many designs, the suction pipe must be filled. A foot valve at the intake or a check valve in the suction line helps retain the liquid when the pump stops.

That valve can retain prime only if it closes and seals correctly. A leaking suction pipe, loose fitting, damaged seal, or nonholding valve can allow the liquid to drain away or air to enter before the next startup.

Flooded suction

In a flooded-suction arrangement, the supply-liquid level is above the pump. Gravity can move liquid down the suction piping and into the casing when the system is configured correctly.

The pump must still be vented as its manufacturer specifies. Trapped air needs an approved escape path, and the correct valve sequence depends on the installation. Technical guidance on positive- and negative-suction priming illustrates why the source level changes the procedure.

Submerged pumps

A submerged pump generally does not require routine manual priming because liquid already surrounds or fills its pumping section. If a submersible well or sump pump runs without moving water, follow its model-specific troubleshooting procedure rather than opening an unrelated surface pipe. The problem may involve source level, controls, discharge restrictions, installation, or the pump itself.

Self-priming pumps

“Self-priming” does not mean “safe to run empty.” A self-priming centrifugal pump normally uses a retained charge of liquid to mix with and remove air from the suction line. It usually needs an initial fill and may need to be filled again after drainage, maintenance, extended inactivity, or loss of the retained liquid. Iwaki America’s explanation of self-priming centrifugal pumps describes this retained-liquid process.

Pool pumps

On many pool pumps, the strainer basket is the approved filling point. Filling the basket is only part of the task: the lid, gasket, drain plugs, unions, and suction fittings must reseal correctly. A suction-side air leak can prevent the pump from establishing stable circulation.

Simple rule: If you cannot identify the pump type, approved filling point, or required valve positions, stop and locate the manual. Do not remove whichever plug appears easiest to reach.

Safety and supplies: prepare before you prime

Gather the necessary supplies before opening the system:

Clean, service-compatible priming liquid
A clean bucket, pitcher, funnel, or suitable hose
The correct wrench, socket, or other tool for the priming plug
A clean cloth for accessible sealing surfaces
Model-approved thread sealant, if required
Appropriate personal protective equipment
The pump manual or verified startup instructions

For an ordinary water pump, use clean water. For non-water service, use only a liquid confirmed as compatible with the process, pump materials, and system requirements.

Before removing a plug or lid:

Switch the pump off at its electrical disconnect or circuit breaker.
Prevent accidental restart in accordance with the site’s isolation procedure.
Verify that the equipment has been made safe to open.
Relieve pressure and operate any vent or relief valve exactly as the system manual directs.

General pump guidance calls for disconnecting power before access and checking exposed equipment before priming; it also identifies the strainer basket as the usual filling point on a pool pump. See this water-pump preparation and inspection guide.

With the power isolated, inspect accessible equipment for:

Cracked, collapsed, loose, or deteriorated suction piping
Loose unions, fittings, hoses, or clamps
Missing or damaged drain and priming plugs
Stuck, damaged, or incorrectly positioned valves
A dirty, cracked, flattened, or displaced basket-lid gasket
Missing fasteners or guards
Exposed or damaged wiring
Damaged belts or pulleys, where fitted
Leakage, corrosion, overheating, or mechanical contact

Confirm that the source contains enough water and that the intake is not known to be blocked. Priming cannot overcome an empty tank, a source level below the intake, a closed isolation valve, or an obstructed suction opening.

Damaged plug threads can prevent an airtight seal, while an incorrectly seated lid gasket can admit air after restart. Use only gasket lubricant or thread sealant approved for the particular pump and service.

Warning: Do not open an energized, hot, hazardous, or pressurized system unless you have the correct model-specific procedure, isolation method, and protective equipment. Stop if you cannot verify what the casing or piping contains. Typical manufacturer-oriented guidance requires power disconnection and manual-specific use of relief valves before filling a pump through its priming port (Bromic Plumbing & Gas).

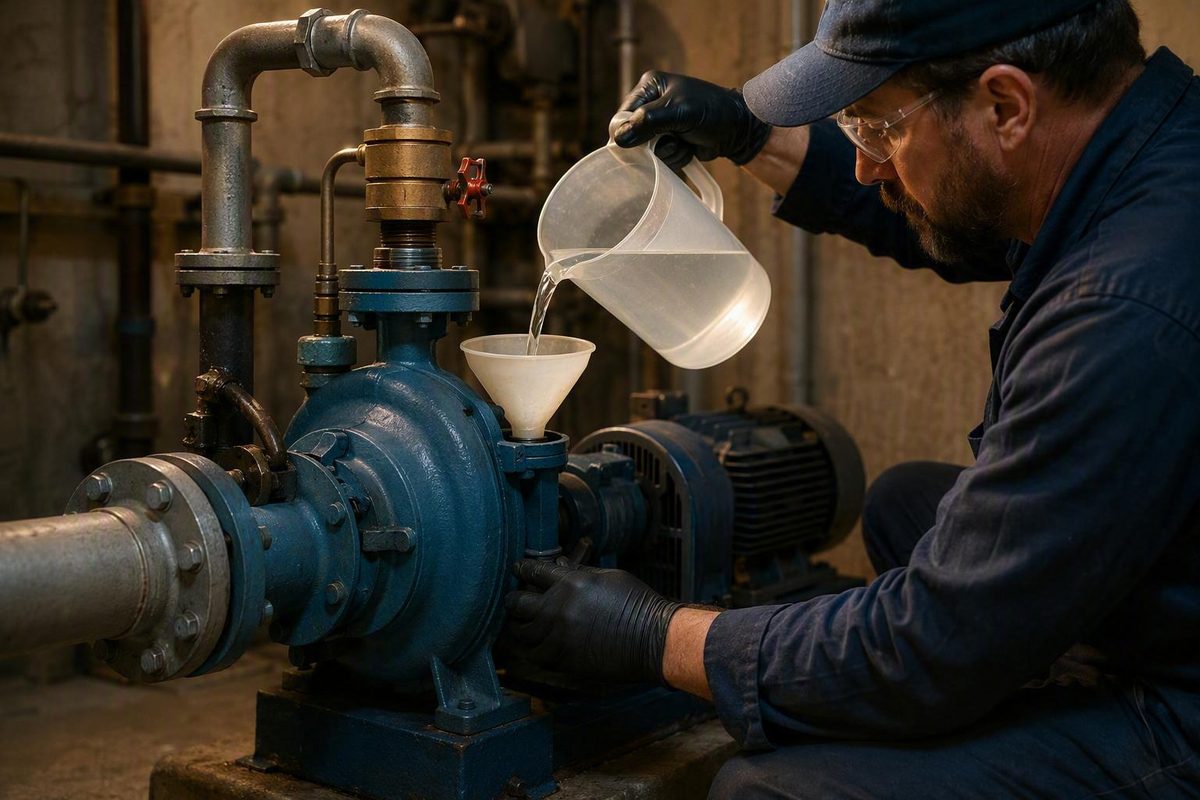

How to prime a typical surface-mounted water or jet pump

The following sequence is a general framework for a common surface-mounted water or jet pump. The manual must supply the exact valve positions and operating limits.

Isolate power and make the system safe. Turn off the correct disconnect or circuit breaker, prevent accidental startup, and follow the model-specific process for relieving pressure. Confirm that the pump cannot start while your hand or tool is near an opening.
Locate the approved filling point. Depending on the installation, this may be a priming plug, vent, filling tee, or strainer basket. A jet-pump priming plug is commonly located on top of the housing, but the arrangement varies. Do not confuse a priming port with a drain, lubrication point, pressure connection, or unrelated pipe plug.
Set the valves as the manufacturer specifies. Identify the suction, discharge, bypass, circulation, and relief valves before moving any of them. There is no universal open-or-closed valve sequence. An incorrect arrangement can trap air, drain the prime, block flow, or allow pressure to develop where it should not.
Open the approved filling point carefully. Remove the plug or open the basket lid without damaging its threads, seal, lid, or gasket. Use the correct tool and controlled force. If a plug will not move, do not apply enough force to crack the housing.
Add liquid slowly. Pour clean, compatible liquid into the approved point while allowing displaced air to escape. If the manual identifies a separate vent, use it exactly as directed.
Fill the required volume. Continue until the casing is full and, where required, the suction line is full. A typical jet-pump procedure calls for completely filling both the housing and suction pipe before startup; it also requires circuit isolation and an airtight plug seal (R.C. Worst & Company). Do not assume that every pump can start from a partial fill.
Check whether the fill remains stable. If the source is below the pump, pause while the power remains off and observe the liquid level at the filling point. A level that holds is encouraging. A steadily falling level suggests drain-back through a suction leak or nonholding foot/check valve, but it does not identify the failed component conclusively.
Reseal the pump. Reinstall the plug or lid securely, using approved sealant if required. Clean and seat a basket gasket evenly before closing its lid.
Prepare for startup. Return every valve to its specified startup position. Remove tools and loose materials, replace guards, and confirm that nobody is touching the equipment.
Restore power and monitor immediately. Watch for water movement, rising pressure where a gauge is installed, and stable operation. Listen for persistent hissing, grinding, rattling, or other abnormal sounds. Be ready to switch the pump off promptly.

Do not substitute a generic fill volume, runtime, pressure target, or retry count. Those depend on the casing, suction-pipe dimensions, elevation, source level, controls, and manufacturer limits.

Adjust the method for jet, pool, flooded-suction, and suction-lift systems

The basic goal remains the same—replace trapped air with liquid—but the practical method changes with the pump and installation.

Jet pump

For a typical surface-mounted jet pump:

Switch off and isolate the circuit breaker.
Relieve pressure as the manual directs.
Remove the approved priming plug.
Fill the pump housing and suction pipe completely with clean water.
Pause to check for rapid drain-back.
Reinstall the plug with an airtight seal.
Put the valves in their specified startup positions.
Restore power and check for water movement and pressure buildup.

A top-mounted priming plug is common but not universal. Some systems use a vertical filling tee, a valve, or a separate hand-priming arrangement.

Pool pump

For a typical pool pump:

Switch off power at the breaker or disconnect.
Put circulation valves in the model-specified priming position.
Open the strainer-basket lid.
Remove accessible basket debris if it is safe to do so.
Fill the basket housing as directed.
Inspect and clean the lid gasket and sealing surface.
Seat the gasket correctly and close the lid securely.
Restore power and watch for steady return flow.

Persistent bubbles, sputtering, loss of water from the basket, or failure to establish return flow indicates that prime may not have taken. Stop within the model’s permitted priming period rather than allowing prolonged operation without useful flow.

Flooded-suction centrifugal pump

When the supply-liquid level is above the pump, gravity can fill the suction piping and casing. The key task is to provide trapped air with an approved escape path.

Use the specified venting arrangement and valve sequence. Wait for the indication required by the manual—such as bubble-free liquid at an approved vent—before startup. Never loosen a random fitting to vent a pressurized, hot, contaminated, or hazardous system.

Suction-lift or negative-suction system

When the source is below the pump, the casing and suction line must retain enough liquid for startup. A functioning foot or check valve is commonly essential because it prevents the liquid column from draining back toward the source.

After filling the required piping, pause before startup. If the level falls, investigate instead of repeatedly topping up and restarting. Possible causes include a nonholding valve, a leaking suction pipe or fitting, a damaged priming-port seal, or leakage within the pump.

Self-priming pump

A self-priming centrifugal pump removes suction-line air by circulating an initial liquid charge retained in its casing. It cannot perform that process if its required liquid reservoir is empty.

Fill the casing as instructed after initial installation, drainage, maintenance, extended shutdown, or loss of the retained liquid. Self-priming describes the pump’s air-handling capability after the correct initial fill; it does not indicate dry-running tolerance.

These setup notes do not replace the model’s exact valve sequence, suction-lift limit, maximum priming period, or startup instructions.

How to tell whether the pump is successfully primed

After restoring power, look for a progression from initial water movement to stable operation.

General signs of a successful prime include:

Water begins moving from the source.
Initial air clears and flow becomes steady rather than sputtering.
A pool system develops consistent return flow.
The pressure gauge rises toward the system’s specified normal range.
The priming plug, basket lid, unions, and accessible connections remain secure.
The pump’s sound becomes stable rather than hollow or erratic.

On a pressure-controlled well system, the pump should build pressure and may stop when it reaches the pressure-switch setting. A jet-pump procedure identifies water movement, pressure buildup, and pressure-switch shutdown as success indicators for systems equipped for that behavior.

Automatic shutdown is not a universal test. Transfer, circulation, irrigation, and pool pumps may run continuously during normal operation. Judge those systems by their designed flow, pressure, sound, and control behavior.

Inspect the filling point and accessible suction connections while the pump operates.

A brief initial discharge of air may occur. The following indicate that prime has not been established or is unstable:

Persistent sputtering or continuous bubbles
Hissing around fittings, plugs, or the lid
No useful flow
Failure to build expected pressure
Repeated loss and recovery of flow
Continuous operation without useful water movement

If these conditions continue beyond the model’s permitted priming period, stop the pump promptly. Do not leave it running without flow in the hope that it will eventually recover.

Why a pump will not prime: symptom-to-cause troubleshooting

Switch off and safely isolate the pump before checking plugs, lids, hoses, valves, or fittings.

Symptom	Likely possibilities	Safe checks	Stop conditions
No flow and no pressure	Casing or required suction piping not full; empty source; incorrect valve position; blocked intake or suction pipe	Verify source level, fill requirements, valve positions, and the accessible intake path	Stop if the pump runs without flow, becomes hot, or reaches its startup limit
Sputtering or uneven flow	Trapped air; suction-side air leak; falling source level	Recheck venting, lid gasket, priming plug, unions, clamps, and source level	Stop if stable flow cannot be established
Hissing near fittings	Loose suction joint; damaged hose; leaking port seal; cracked housing or pipe	With power isolated, inspect and reseat accessible connections as permitted by the manual	Stop for cracks, damaged components, or an uncertain repair
Priming liquid drains away while off	Leaking suction line; nonholding foot/check valve; leaking seal or plug	Refill with power off, observe the level, and inspect accessible connections	Stop if liquid drains rapidly or the leak cannot be found
Pump cannot lift water	Excessive suction lift; source level too low; air leak; restriction	Compare the installation with the model’s limits and inspect the suction path	Stop if the source is below the usable intake or limits are unknown
Pump runs continuously without normal pressure	Lost prime; restriction; air leak; low source; incorrect valve position; pressure-system fault	Shut down and check prime, source level, valves, suction path, and control instructions	Stop for heat, abnormal sound, leakage, or tripped protection
Prime disappears after shutdown	Air leak; loose or cracked piping; failed check valve; worn seal	Inspect the suction side and observe whether the off-state fill level falls	Stop repeated restarts until the recurring fault is identified

No flow and no pressure

Start with the simplest checks. Was the casing actually full? Does the model require the suction pipe to be filled? Is water available at the source? Is the intake submerged and unobstructed? Are the valves in their specified positions?

A successful fill cannot compensate for a blocked intake, collapsed hose, empty tank, or water level below the suction opening.

Sputtering, bubbles, or uneven flow

These symptoms can indicate trapped air or air entering through the suction side. Recheck the approved venting process and inspect the lid gasket, priming plug, unions, hoses, clamps, and threaded fittings.

Not every bubble comes from a loose fitting. Low source level, air entering at the intake, or an installation outside the pump’s suction capability may produce similar symptoms.

Hissing near a connection

Hissing close to a suction fitting, lid, plug, hose, or housing makes an air leak a reasonable possibility. Shut down before touching the connection. Check for loose joints, cracked parts, damaged threads, displaced gaskets, or unsuitable sealant.

A suction leak can admit air without causing an obvious external water leak. Air travels inward while the pump operates because pressure at that point may be below atmospheric pressure.

Priming water disappears before startup

If the pump is above the source and added water will not remain in place, suspect drain-back. A foot or check valve that does not close is one possibility, but leakage elsewhere in the suction line or at the priming-port seal can create the same symptom.

A falling level is a useful clue, not a definitive valve test. Locating the fault may require isolation testing or professional inspection.

Pump runs continuously without pressure

Switch it off. Recheck the prime, source level, suction restrictions, air leaks, and valve configuration before another attempt. On a pressure system, also consult the pressure-tank, pressure-switch, and control instructions.

Avoid repeated dry restarts. They add heat and wear without correcting the missing liquid, air leak, blockage, or mechanical fault. Do not dismantle the pump internally unless the manufacturer’s procedure calls for it and you are qualified to do the work.

Why prime keeps getting lost—and when to stop

A one-time need to reprime does not necessarily indicate a defect. Repriming may be required after:

Initial installation
Intentional system drainage
Winterization
Maintenance or pipe replacement
Extended inactivity
Loss of the retained charge in a self-priming casing

Losing prime after every shutdown is different. It indicates a condition that allows liquid to drain away or air to enter.

Recurring causes include:

Suction-side air leaks
A foot or check valve that does not hold
Loose, cracked, collapsed, or deteriorated piping
A leaking priming plug or basket-lid seal
Worn pump seals
Low source level
A blocked intake or suction pipe
Excessive suction lift
Incorrect valve configuration

A foot or check valve helps retain the liquid column when the source is below the pump. It can do so only if it closes fully and seals against its seat. Debris, wear, damage, or a leak elsewhere in the suction piping can produce similar drain-back symptoms.

As a basic observation, fill the pump with the power off and watch whether the liquid level remains stable. If it drops, investigate the suction path and retaining valve. Do not treat the observation as conclusive proof that the valve alone has failed.

Stop attempting to prime the pump if you encounter:

No flow or pressure after the attempts permitted by the manual
Rapid disappearance of the added liquid
An overheating casing or motor
A burning odor
Grinding, rattling, or another abnormal noise
Unusual vibration
Visible leakage
Cracked piping or housing
Damaged or exposed wiring
A tripped breaker, overload, or other protective device
Prime that is lost after every shutdown
Uncertainty about the liquid, valve sequence, or pressure state

Dry operation can cause overheating, seal damage, component wear, and eventual pump failure. If a pump does not establish flow within its permitted startup period or develops heat, abnormal noise, leakage, vibration, or electrical trouble, isolate it rather than repeatedly restarting it.

Contact the manufacturer or a qualified pump technician when the valve arrangement cannot be confirmed, hazardous liquid is involved, electrical or mechanical trouble is suspected, the system cannot be safely depressurized, or routine external checks do not resolve the problem.

To reduce future prime loss:

Inspect accessible suction connections, plugs, lids, and seals periodically.
Keep the source level adequate and the intake clear.
Maintain a functioning foot or check valve where the design requires one.
Verify prime after drainage, maintenance, or prolonged shutdown.
Correct recurring air leaks instead of relying on repeated refilling.
For critical installations, use only model-compatible low-flow or low-level protective controls specified by the system designer or manufacturer.

Frequently asked questions about priming a pump

Do self-priming pumps need to be primed the first time?

Usually, yes. A self-priming centrifugal pump generally needs an initial liquid charge in its casing. It uses that retained liquid to mix with and expel air from the suction line.

It may need filling again after drainage, maintenance, extended inactivity, or loss of the retained charge. “Self-priming” means the pump can evacuate suction-line air under specified conditions after it has the required liquid; it does not mean the casing should be empty at startup.

How do I know when enough water has been added to prime the pump?

Follow the model’s fill indication. For many conventional centrifugal and jet pumps, enough water has been added when the casing and required suction piping are completely full, trapped air has escaped, and the level remains at the approved filling point.

Do not rely on a universal quantity. The required volume depends on the casing, suction-pipe dimensions, installation layout, and whether the suction line was drained. Some pumps require a completely full casing and suction line, while other designs have different instructions.

Why does the water disappear from the priming port before startup?

Water disappearing while the pump is off suggests drain-back or leakage from the suction system. Possible causes include:

A foot or check valve that is not holding
A leaking suction pipe or fitting
A loose priming plug or filling-tee connection
A leaking pump seal
A cracked hose, pipe, or housing

The falling level does not conclusively identify the failed component. Inspect the accessible suction path with power isolated, and seek qualified help if the leak cannot be located safely.

How long should a pump run before it begins moving water?

There is no universal safe runtime. Priming time varies with the pump, suction-line volume, lift, source level, piping arrangement, and retained liquid. Use the startup or maximum priming period stated in the model manual.

Monitor the pump from the moment it starts. If it does not produce flow or begin building the expected pressure within the permitted period, switch it off and investigate. Do not use a generic runtime or retry count.

Can running a pump without prime damage it?

Yes. Running without adequate liquid can deprive seals and other internal components of cooling or lubrication, leading to friction, overheating, wear, and possible failure. The speed and severity of damage depend on the pump design and materials.

If a pump is operating without useful flow, stop it promptly unless the manufacturer explicitly permits that condition. Restore prime and determine why the liquid was lost before restarting.

The safety-first sequence is straightforward: identify the pump, isolate electrical power, follow the model-specific pressure and valve procedure, fill the approved point with compatible liquid, vent trapped air, reseal the system airtight, and verify steady flow and appropriate pressure. If the pump will not hold liquid, repeatedly loses prime, or develops heat, leakage, abnormal noise, vibration, or electrical trouble, stop rather than continuing to run it dry.
